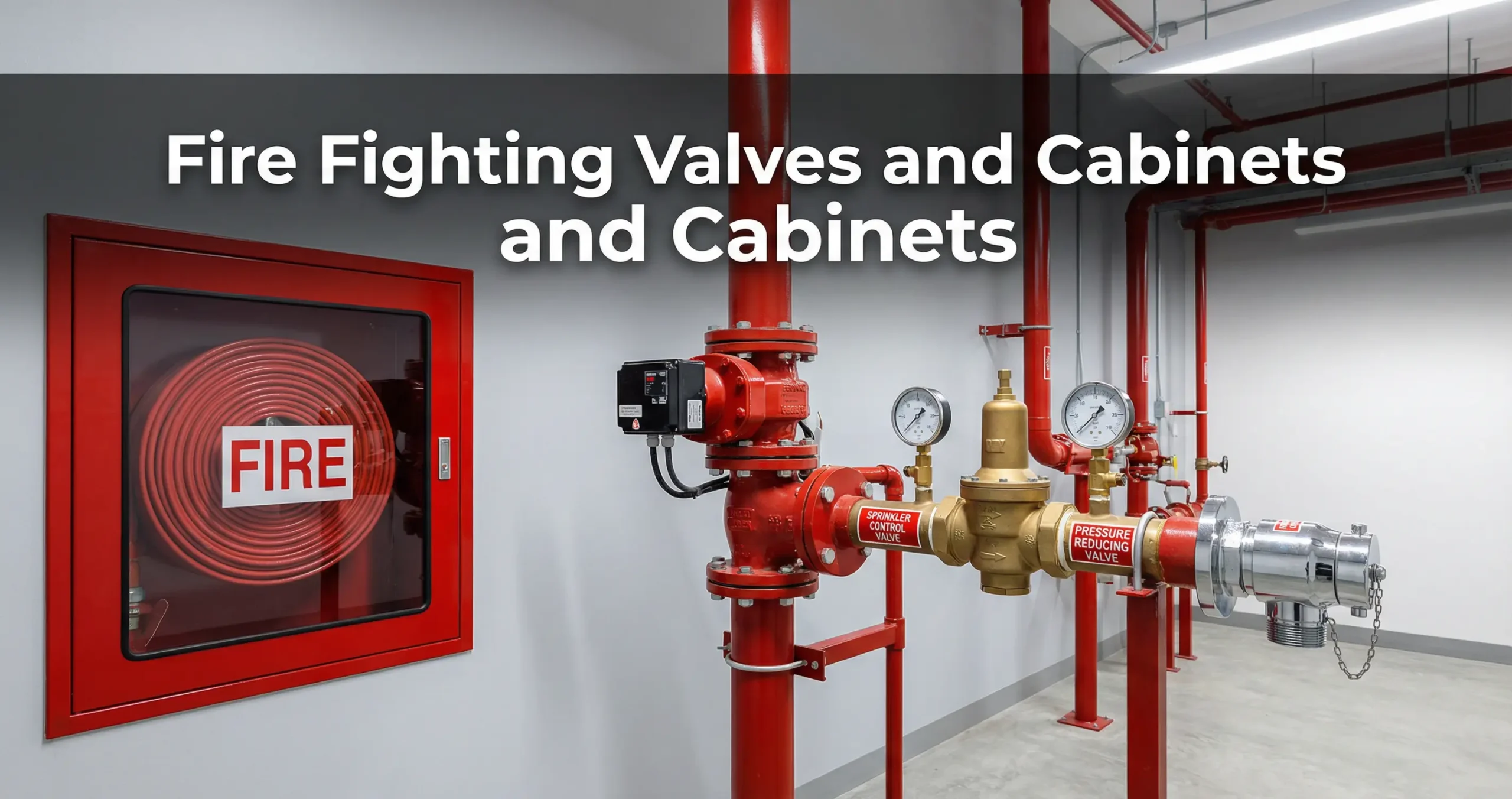

Among the most operationally critical elements of any building’s fire protection infrastructure, fire fighting valves and cabinets ensure that water supply reaches every area of a facility at the correct pressure and that first-response equipment is immediately accessible when an emergency occurs. A poorly specified valve or an incorrectly positioned cabinet can mean the difference between a controlled response and a catastrophic loss. Advanced Systems supplies and installs certified fire fighting valves and cabinets across Saudi Arabia, engineered to Saudi Civil Defense requirements and international fire protection standards for commercial, industrial, and infrastructure projects of every scale.
Fire Fighting Valves: Types and Functions
Fire fighting valves are the control and regulation backbone of any water-based suppression system. Every valve must be correctly specified, installed, and maintained to ensure the system delivers water precisely where and when it is needed. Advanced Systems supplies the full range of certified fire fighting valves for every application:
- Gate Valves: Full-bore isolation valves used to shut off water supply to specific zones or sections of the fire suppression system for maintenance or emergency isolation. Their low flow resistance makes them the standard choice for main supply isolation in fire protection pipework.
- Butterfly Valves: Compact, lightweight isolation valves widely used in larger diameter pipework where space constraints make gate valves impractical. Available with supervisory switches for tamper monitoring — a key requirement under NFPA 13 and Saudi Civil Defense codes.
- Check Valves (Non-Return Valves): Prevent backflow within the fire suppression system, protecting pumps, water supply connections, and system integrity from reverse flow conditions that can compromise performance and contaminate potable water supplies.
- Pressure Reducing Valves (PRVs): Essential in multi-story buildings where static pressure on lower floors exceeds the maximum working pressure of hose reels, sprinklers, and other system components. PRVs protect equipment and ensure consistent operating pressure throughout the distribution network.
- Landing Valves and Outlet Valves: Installed on fire hydrant risers and wet risers to provide controlled water access points for fire brigade use and first-response hose connections at each floor level.
- Zone Control Valves: Sectional isolation valves that allow individual sprinkler zones to be isolated for testing or maintenance without shutting down the entire system — critical for occupied buildings requiring continuous protection.
Fire Fighting Cabinets: Housing and Protecting First-Response Equipment

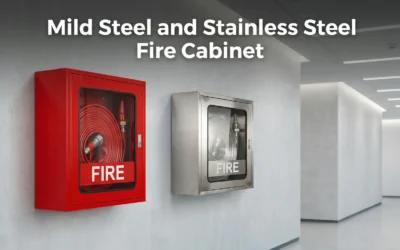

A fire fighting cabinet provides secure, organized, and highly visible housing for hose reels, nozzles, landing valves, and ancillary fire fighting equipment — ensuring immediate access during an emergency without obstruction or delay. Advanced Systems supplies cabinets in mild steel and stainless steel configurations to suit every installation environment:
- Surface-Mounted Cabinets: Fixed directly onto the wall surface — the fastest and most cost-effective installation option for industrial facilities, warehouses, and back-of-house service areas.
- Semi-Recessed Cabinets: Partially set into the wall to reduce projection into the corridor or occupied space while maintaining full equipment capacity — the standard specification for most commercial and hospitality projects.
- Fully Recessed Cabinets: Installed completely flush with the wall surface for architectural finish requirements in high-specification commercial lobbies, hotels, and healthcare facilities.
Integration with Fire Detection and Alarm Systems
Fire fighting valves and cabinets operate as part of a fully integrated fire protection strategy. Supervisory switches on isolation valves connect directly to the building’s fire alarm control panel, providing real-time tamper monitoring and ensuring that any unauthorized valve closure triggers an immediate alarm. Advanced Systems designs every installation with full integration of certified detection and notification infrastructure — understanding the full range of Fire Alarm Types is essential to selecting the correct alarm architecture for each facility. All alarm installations are supported by certified Fire Alarm Devices throughout the building, and for mission-critical projects, we integrate with leading control platforms including the Potter Fire Alarm System for comprehensive, fully coordinated facility-wide fire protection.
Advanced Systems: Your Fire Fighting Valves and Cabinets Supplier in KSA
Advanced Systems supplies and installs the complete range of certified fire fighting valves and cabinets for facilities of every type and scale across Saudi Arabia. All products we supply meet Saudi Civil Defense specifications and carry the required international certifications — UL, FM Global, or EN — ensuring reliable performance, straightforward regulatory approval, and long-term system integrity. Contact Advanced Systems today to discuss your fire fighting valve and cabinet requirements and receive a tailored supply and installation proposal for your project.
Frequently Asked Questions
What types of valves are required in a fire suppression system?
A complete fire suppression system typically requires gate or butterfly isolation valves, check valves, pressure reducing valves, zone control valves, and landing valves — each serving a specific function in controlling, regulating, and protecting the water supply network. Advanced Systems specifies the correct valve types for each application based on system design, pressure requirements, and Saudi Civil Defense compliance standards.
Which fire cabinet type is right for my building?
The correct cabinet type depends on your wall construction, corridor space constraints, and finish requirements. Surface-mounted cabinets suit industrial and warehouse environments; semi-recessed cabinets are the standard for commercial buildings; and fully recessed cabinets meet the aesthetic requirements of high-specification hospitality and healthcare projects. Advanced Systems advises on the optimal specification for each installation location.
